Solar Panel SS316 20HV 520Mpa M100 Tapping Hanger Bolt

Brand Name : FLRS or　OEM

Model Number : FLRS-WS026

Certification : ISO9001

Place of Origin : China

MOQ : 1 piece

Payment Terms : T/T， L/C， Western union， paypal

Supply Ability : 100tons/month

Delivery Time : 8-20days

Packaging Details : carton/ plywood cases/plywood pallets

Name : Stainless Steel Fasteners

Standard : DIN

Material : carbon steel, SS304, SS316

Size : M4-M100

Length : 0.05-6 meters

Finish : zinc plated(clear/bule/yellow)+wax,black/grey phosphate,nickel, ruspet

Contact Now

stainless steel Double head threaded wood screw/Hanger Bolts

Stainless steel wood screws are made from stailes steel grade 304 , they are also called lag screws or timber screws , wood screws with hexagon head full wood tapping threads based on standard ASME B18.2.1

Physical Properties

Hardness ( HV )	20	Yield Strength ( Mpa )	205	Elongation ( % )	35
Tensile Strength ( Mpa )	520	Torque	3.5	Reduction Area ( % )	50

Specification

Thread diameter	1/4
Thread Length	2"
Pitch	2.1
Head Diameter	11.2
Head Height	3.5
Drive	Hex

Optional AMSE Specifications

d	L
#0	2-5
#1	5-10
#2	3-10
#3	5-10
#4	5-15
#5	5-20
#6	8-25
#7	8-30
#8	10-50
#9	10-60
#10	15-80
#12	20-100
#14	30-150

Finish

Type	Thickness	Salty Spray Hours	RoHS / REACH
Passivation	5	150	RoHS

Product Features

1 . Harden material

Stainless steel wood screws with good ductility and hardness is up to HRC 20.

2 . Corrosion resitance

Sainless steel wood screws are not rusted in years .

3 . Fast drilling performance

Wood tapping threads can cut and drill workpieces fast .

4 . Resitant high temperature

5 . Nice and smooth surface .

No burrs or scratch

6 . Environmental friendly

7 . Solid stability .

8 . Effective working .

Strict sizes and tolerances ensure stainless steel wood screws to be operated smoothly .

9 . Long-service .

Applications

Stainless steel wood screws are normally used for secure wooden or plastic or chipboard ,especially for furniture .

Tips for Use

1 . Use a socket wrench or spanner to operate stainless steel wood screw .

2 . The thread moving direction is from right to left , and back out in reverse direction .

3 . Do not use a sharp tool or bladed tool to drive the screws .

4 . Do not scratch the screw in harden something in order to keep bright surface .

5 . Keep screws in the dry warehouse .

Solar Panel SS316 20HV 520Mpa M100 Tapping Hanger Bolt

Product Tags:

M100 Tapping Hanger Bolt

SS316 Tapping Hanger Bolt

20HV Tapping Hanger Bolt

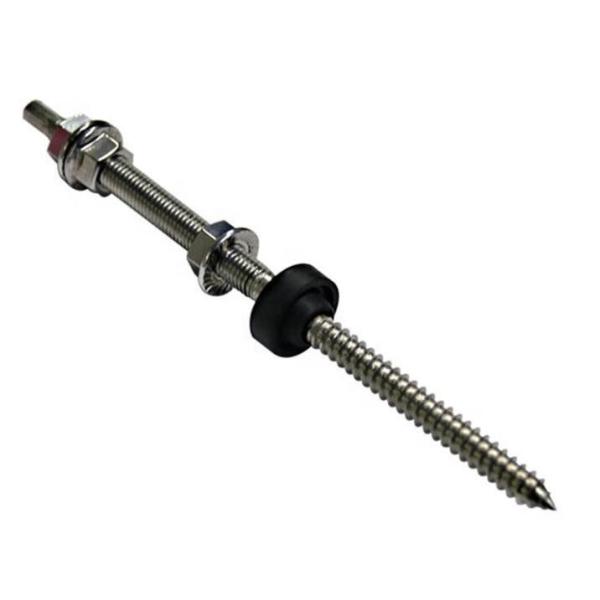

Solar Panel SS316 20HV 520Mpa M100 Tapping Hanger Bolt Images
